Benefits
The Shop System™ introduces high quality binder jetting to an entirely new market of machine shops. Shops can now cost effectively 3D print end use metal parts with unparalleled speed and productivity.
1. Easy to use & operate
Designed with the modern machine shop in mind, the Shop System™ is built to fit seamlessly into your workflow. Produce parts with superior surface finish and resolution versus laser-based 3D printing systems at a fraction of the cost.¹
Affordable turnkey solution
The Shop System™ contains all the equipment your machine shop needs to begin binder jetting — from print through sintering. And with a range of build volume configurations (4L, 8L, 12L, and 16L), the Shop System™ is designed to scale to your shop’s throughput.
Easy Sintering with Live Sinter™
Take the guesswork out of sintering printed parts. Live Sinter™ tackles the decades-old problem of part shrinkage and distortion through predictive counter-deformation. The software simulates the complex forces parts experience during sintering and automatically adjusts the geometries that, once printed, will sinter to the original, intended design specifications.
Simplified post-processing
Parts on the Shop System™ print fully supported in their powder bed, and feature hand-removable sintering setters. Avoid hours of labor machining off support structures typical to laser-based 3D printing systems and instead achieve customer-ready, near-net-shape parts right out of the furnace.
Optimized powders & parameters
Get started quickly with a turnkey, end-to-end 3D printing solution. The Shop System™ features Desktop Metal-engineered powders and processing parameters, optimized to deliver exceptional part quality and ensure part-to-part repeatability.
2. Unparalleled Productivity
Use 3D printing to amplify your shop’s output. Effortlessly print end-use metal parts with the quality, surface finish and tolerances required to co-exist with machining.
10x the speed
With a high-speed, single-pass print engine, the Shop System™ produces high-quality metal parts at up to 10x the speed of laser powder bed fusion systems⁴—meaning you can 3D print up to hundreds or thousands of metal parts per day.⁵
Print a build per shift
Average cycle times of 6-12 hours enable a new build every shift.² With the ability to 3D print tens to hundreds of near-net shape parts each day, you can reserve machinist hours for refining critical features.
Flexible batch jobs
The Shop System™ is a tooling-free manufacturing process. Change over to a new job at the press of a button and process multiple complex jobs without the need for custom setups.
3. Superior print quality
Print customer-ready, high-resolution parts with incredibly fine feature detail. Achieve surface finishes as low as 4µm Ra out of the furnace. The Shop System™ produces dense, solid parts, no debind or infill required.
High-resolution printing
The Shop System™ features the highest resolution single-pass binder jetting system on the market. With 1600x1600 DPI native (33% higher resolution than comparable systems), and over 670M drops per second, the Shop System™ delivers high-speed, high-resolution 3D printing.³
Adaptive print engine
Users don’t have to sacrifice feature detail or resolution for speed. Employing a 1.2 pL droplet size and automated drop multiplexing up to 6 pL, the Shop System™ achieves superior surface finish, bleed control and rich feature detail at high speed.
5x print redundancy
To avoid jet-outs and print issues the Shop System™ features 70,000-plus nozzles spread across five rows. The printhead features 25% higher nozzle redundancy than comparable 3D printing systems, resulting in enhanced print quality and reliability.³
Flexible Manufacturing
The Shop System™ is designed to seamlessly integrate additive manufacturing into your shop’s workflow to improve productivity across any range of manufacturing scenarios.
1. Mixed-volume production
Produce parts with different geometries simultaneously without the need for multiple setups.
2. Batch production
Cost effectively 3D print low-volume batches of complex parts due to elimination of tooling.
3. Mid-volume production
Produce hundreds of near-net-shape parts every day with dramatically reduced labor costs and expanded geometric flexibility.
How it works
The Shop System™ is an end-to-end, single-pass binder jetting solution delivering high-resolution 3D printed parts at a fraction of the time and cost.
1. Print
For each layer, the printer spreads metal powder across the build bed, and precisely jets a binding agent to bond loose powder and define part geometry. Layer by layer, metal powder and binder is deposited until the entire build volume is packed with bound parts and surrounding loose powder.
2. Depowder
Once an entire build is complete, the build box is removed and placed in a powder station for bulk and fine depowdering—with the help of a hand-held air pick. Loose powder is removed from the parts and recovered via a built-in powder recycling system with powder sieving.
3. Sinter
Depowdered parts are placed onto trays in a shop-safe, high-throughput furnace for batch sintering. With an external gas hookup and temperatures reaching 1400ºC, the Shop System™ furnace is able to deliver quality and reliable sintering in a shop-friendly format.

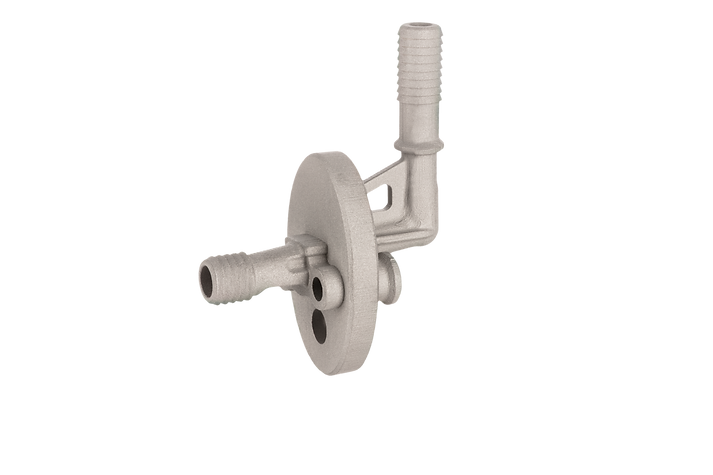

Gallery
Clipper Blade
Down Hole Tool Slip
Killacycle Coupling
Bracket
Bulb Nozzle
Clutch Plate
Sensor Holder
Bearing Housing
Fuel Swirler
